1. Introduction: Why Is EVA Foam Replacing Traditional Materials?

In the field of high-end equipment manufacturing, engineers have been searching for a material that combines four essential properties: lightweight, cushioning, chemical resistance, and machinability. Traditional rubber is too heavy, polyurethane (PU) is too expensive, and polyethylene (PE) foam is difficult to control in terms of hardness. EVA (Ethylene-Vinyl Acetate) foam, with its unique combination of properties, has become the material of choice for precision equipment linings and structural components.

Yufa Polymer has been deeply engaged in EVA foam CNC precision machining for years, serving customers across marine engineering, medical devices, aerospace, and other demanding industries. This article provides an in-depth analysis of EVA foam’s core properties from a materials science perspective and reveals its practical value in three high-end application fields.

2. Core Properties of EVA Foam

2.1 Lightweight and Controllable Density

EVA foam density typically ranges from 30 to 200 kg/m³, far lower than natural rubber (~1200 kg/m³) and most structural plastics. By adjusting the foaming process, foam density can be precisely controlled to minimize weight while maintaining structural integrity. This property is critical for weight-sensitive applications such as underwater vehicles, portable medical equipment, and aerospace payloads.

2.2 Wide Hardness Range for Precise Matching

EVA foam hardness covers a broad range from Shore C 15° to 70°. This means the same material system can meet both soft cushioning needs (such as sealing gaskets) and semi-structural support requirements (such as equipment bases). Hardness consistency is a prerequisite for CNC machining — Yufa Polymer ensures hardness deviation within ±3° through strict incoming material inspection.

2.3 Excellent Compression Set Performance

Compression set is a key indicator of long-term foam reliability. High-quality EVA foam maintains a permanent deformation rate below 5% under compression at 50°C for 24 hours, ensuring it returns to its original shape after prolonged loading. This makes it ideal for applications requiring long-term sealing or continuous cushioning.

2.4 Water and Chemical Resistance

EVA material has a closed-cell structure with extremely low water absorption (≤0.05 g/cm²) and good resistance to seawater, weak acids/bases, and oils. This makes EVA foam an ideal choice for marine environments and chemical industry applications.

2.5 CNC Precision Machinability

EVA foam is particularly well-suited for CNC machining, achieving tolerances of ±0.1mm. Whether complex curved surfaces, irregular internal cavities, or precision slots, CNC machining ensures dimensional consistency and surface finish. For complex geometries such as curved surfaces and beveled corners, CNC machining is the optimal process for ensuring batch consistency.

EVA Foam Key Properties at a Glance

3. Three High-End Application Fields

3.1 Marine Engineering & Underwater Vehicles (AUV/ROV)

Industry Pain Points

• Equipment is continuously submerged in seawater; materials must resist corrosion and marine biofouling

• Underwater vehicles are extremely weight-sensitive; every gram of reduction directly impacts range and payload

• Internal precision electronics require reliable cushioning to withstand pressure changes and vibration

• Cable management systems need precision mounting bases that remain secure under complex flow conditions

EVA Foam Solutions

• Lightweight Cushioning Bases: EVA foam density is 1/6 to 1/40 that of rubber, significantly reducing internal structural weight while providing reliable cushioning support for cable reels, sensors, and other critical components.

• Seawater-Resistant Seals: Closed-cell EVA foam has extremely low water absorption and can be used in seawater environments long-term without performance degradation, ideal for hull sealing and interface gaskets.

• Complex Shape Customization: CNC precision machining enables parts with curved surfaces, beveled corners, and irregular cavities, perfectly conforming to internal equipment spaces and maximizing usable volume.

Typical Parts

AUV cable reel bases, sensor mounting pads, hull sealing gaskets, battery compartment cushioning liners, equipment transport packaging.

3.2 Medical Devices & Equipment

Industry Pain Points

• Medical equipment has strict requirements for material biocompatibility and non-toxicity

• Portable devices need lightweight cushioning to withstand frequent handling and transport impacts

• Precision instruments require custom linings to prevent displacement or collision during transport and storage

• Precise gap filling and vibration isolation needed between equipment housings and internal components

EVA Foam Solutions

• Eco-Friendly & Non-Toxic: EVA material is halogen-free and heavy-metal-free, compliant with RoHS and REACH regulations. Medical-grade raw materials are available to meet strict medical equipment safety requirements.

• Precision Instrument Linings: CNC machining achieves ±0.1mm tolerance irregular linings, customizing protection for each device and ensuring zero displacement and zero damage during transport.

• Vibration & Noise Reduction: EVA foam’s elastic structure effectively absorbs vibration energy, reducing equipment operating noise and improving the experience in operating rooms and patient rooms.

Typical Parts

Medical instrument transport case linings, surgical device handle cushioning, portable diagnostic equipment protective shells, wheelchair seat cushions, rehabilitation device contact layers.

3.3 Aerospace & Defense

Industry Pain Points

• Aircraft have strict weight budgets for every gram; lightweight is a core design objective

• Military equipment must maintain stable performance in extreme temperatures (-40°C to +70°C)

• Precision avionics require reliable shock protection to withstand launch, flight, and landing impact loads

• Equipment packaging systems must balance protection with quick-access operational convenience

EVA Foam Solutions

• Extreme Lightweight: Low-density EVA foam (30~60 kg/m³) can replace traditional cork and felt cushioning materials, achieving significant weight reduction while providing more uniform cushioning performance.

• Wide Temperature Stability: EVA foam maintains elasticity from -60°C to +80°C, meeting the environmental temperature requirements of most aerospace applications.

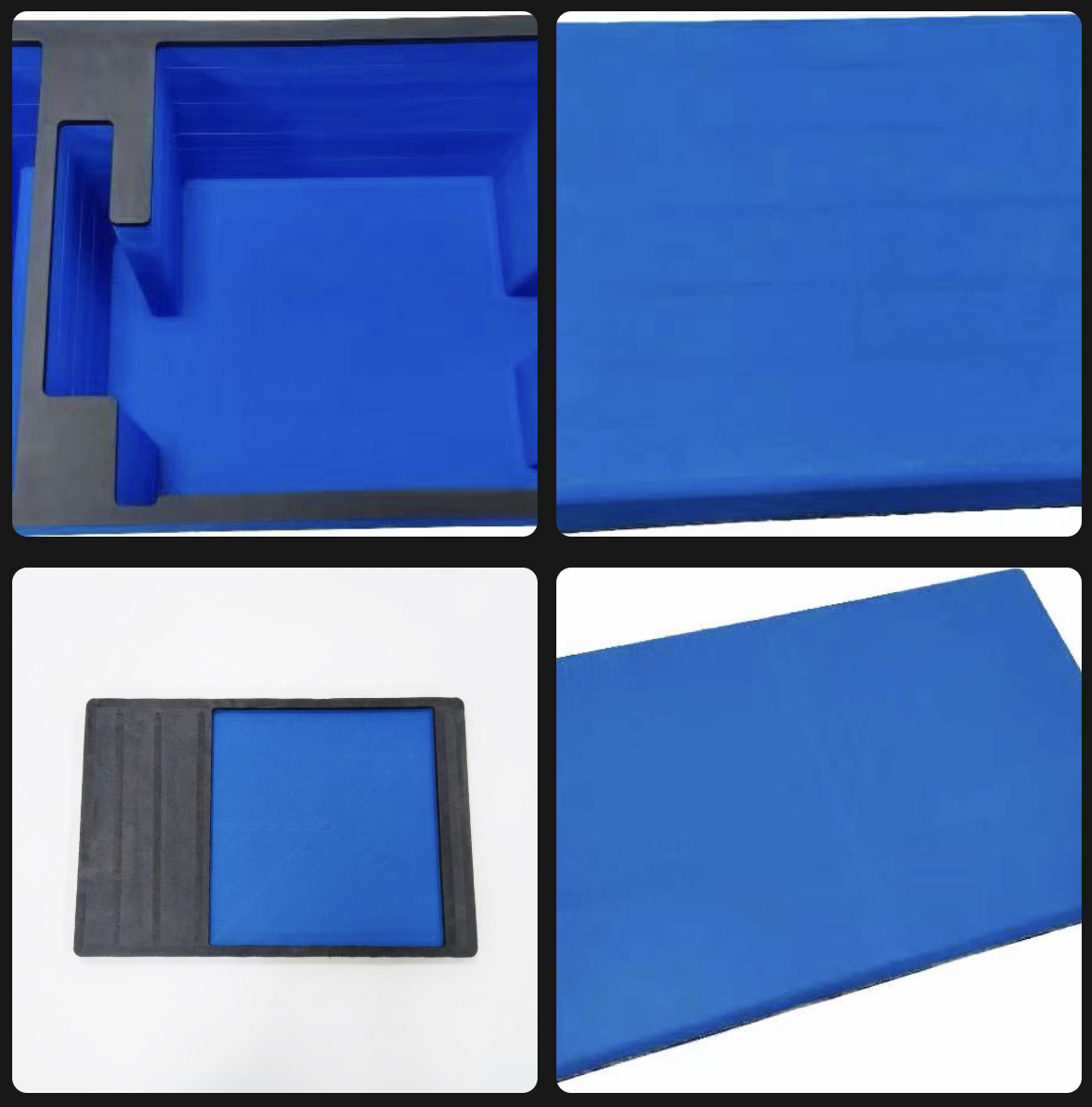

• Precision Equipment Packaging: CNC-machined EVA linings provide precise protective fits for missile guidance components, electro-optical pods, communication equipment, and other precision equipment — shockproof, moisture-proof, and quick-access.

Typical Parts

Avionics packaging linings, aircraft cabin vibration pads, military equipment transport case inserts, helmet inner cushion layers, seat comfort layers.

4. Why Choose Yufa Polymer?

Material Expertise

We’re not just a processor — we’re a materials consultant. Yufa Polymer maintains a comprehensive EVA foam materials database and can recommend the optimal material specification and hardness combination based on your specific operating environment (temperature, media, load, and life requirements).

Processing Capability

Equipped with multiple high-precision CNC machining centers capable of handling foam sheets up to 1500mm × 800mm. For large-size, complex-curved parts (such as curved surfaces and beveled corners), we have extensive process experience ensuring dimensional accuracy and surface quality for every part.

Quality Control

Full traceability from incoming material to finished product. Each batch includes hardness test reports, density records, and dimensional inspection data. We understand that for high-end application customers, consistency matters more than single-batch compliance.

Industry Experience

Serving customers across marine engineering, medical devices, aerospace, and other demanding industries, with extensive application cases and process know-how. We understand the special requirements of different industries and translate them into executable machining solutions.

Does Your Project Require Precision EVA Foam Machining?

Whether you’re an engineer in marine engineering, medical devices, or aerospace, Yufa Polymer provides end-to-end solutions from material selection to precision machining.

Contact us today for free samples and technical evaluation.
